      Detailed Work Makes Quality, Our Quality Equals Perfection.































      Low-Voltage Inverter

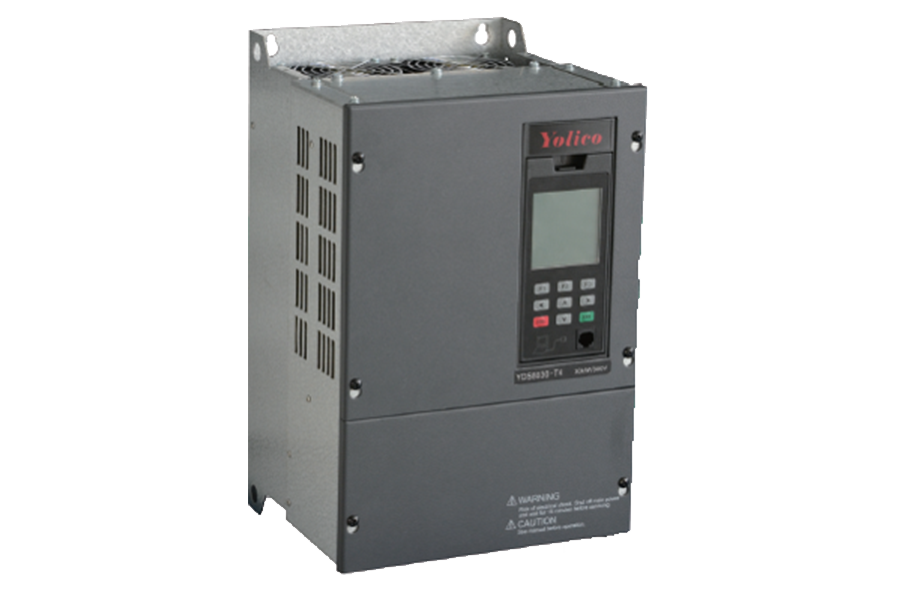

      YDS8000 PMSM Dedicated  VFD












      Capacity



      3-PH 380VAC: 22-630kW

      3-PH 380VAC: 55-760kW







      Control mode



      VF
      Sensorless Vector Control (SVC)

      Feedback Vector Control (FVC)







      Overload



      150%@60s







      Motor Type



      Permanent Magnet Synchronous Motor

      Induction Asynchronous Motor







      Optional Accessories



      RS485 Expansion Card, Optical encoder PG card, Sin & Cosine edltor card， Resolver card etc.






























      YDS8000 PMSM Dedicated  VFD















      Catalog



      Manual

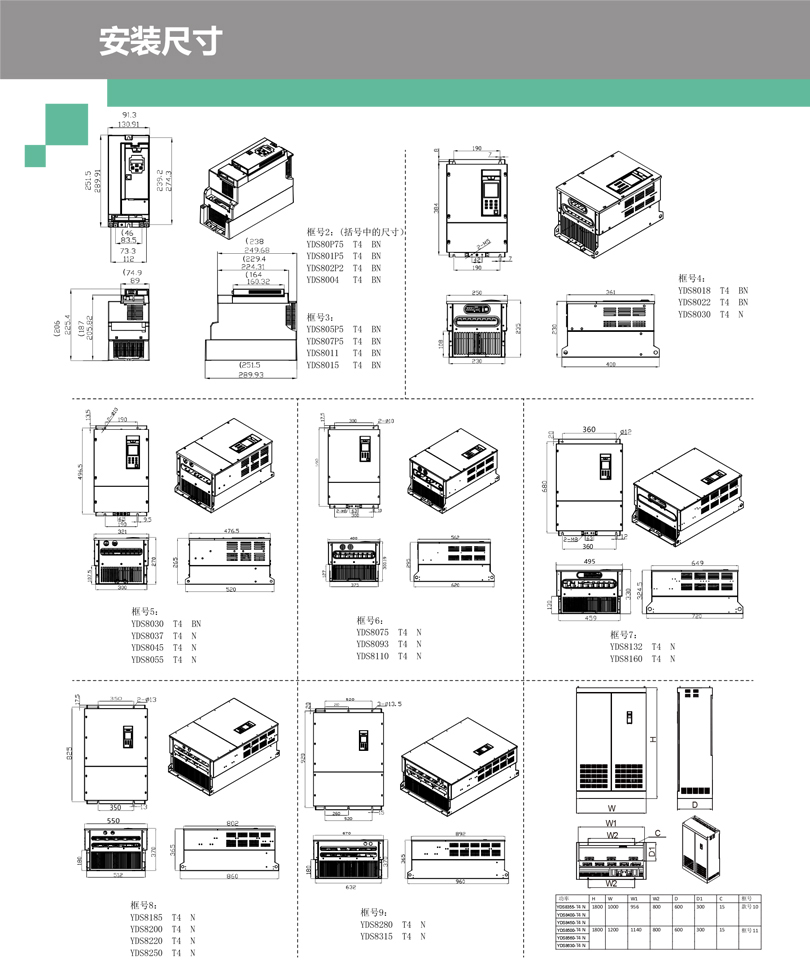

      Installation drawing






















      YDS8000 User Manual








      YDS8000 用戶手冊 V1602
